Lotus Cars Ltd in conjunction with brings you the Esprit V8 Build website.

In order to commermorate the completion of the 27 year production life of the Esprit model and to provide a valuable reference tool to aid servicing aspects of the 'Final Edition' version, a photographic record was made by Lotus Engineering, following the final cars along the production line as they progressed from bare chassis to completed vehicles.

This website of images is not intended to represent any kind of build instruction, but does identify parts configuration and in may cases, the build sequences.

This website should be viewed inconjunction with Service Notes manual K082T0327J and Service Parts List N082T0325J*.

Section	Titles		Pics
1	Chassis Build	Goto	52
2	Engine/Chassis	Goto	16
3	Body Build – Interior	Goto	28
4	Body Build – Bonnet/Boot	Goto	19
5	Body Build – Engine Bay	Goto	20
6	Door Build	Goto	12
7	Body Drop	Goto	20
8	Body Build – Cooling	Goto	12
9	Interior Components	Goto	28
10	Exterior Body Panels	Goto	24
11	Miscellaneous	Goto	12

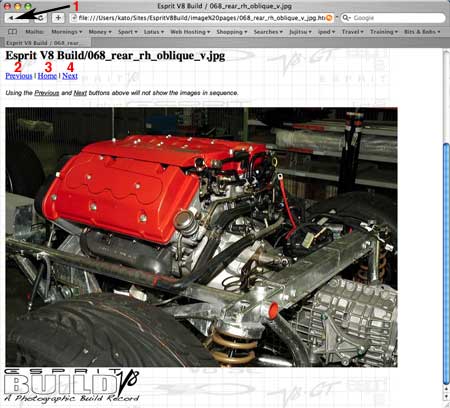

Each section starts with a brief introduction and below is a sequence of images with descriptions of each part on the right-hand side. Each image can be clicked on to view a larger version for better viewing (see image below).

To return to the section, use the back button1 on your browser. The Previous2, Next4 will move to the next pictures, but these are not in sequence. The Home3 button will take you back to this page.

The Body Build section has been divided up into two sections. Interior, Bonnet/Boot and Engine Bay are all in one section and follow each other in sequence. Cooling is on it's own in section 8.

The original PDF from Lotus Cars Ltd is available for download here.

*Service Parts List for the V8 is currently available for download in PDF format for ClubLEW Members. Click here to find out more about joining ClubLEW. Click here for members.
